Commercial Door Operators in Red Deer and Throughout Central Alberta
Red Deer Overdoor provides reliable commercial door openers and door operators for businesses in Red Deer and throughout Central Alberta, helping facilities run smoothly with equipment built for daily performance. Whether you manage a warehouse, retail space, industrial site or multi-unit building, the right door operator keeps your overhead doors moving safely and efficiently. Additionally, Red Deer Overdoor supplies and installs a full range of commercial solutions from trusted manufacturers, ensuring every door system is matched to the demands of your operation.
Types of Commercial Door Operators
MH
Medium-duty Hoist Operator
-
For use on smaller, lighter commercial doors with mid-range duty cycle requirements
-
Rated duty cycle: maximum 12 cycles per hour; less than 50 cycles per day
-
Wall mount for high or vertical lift sectional doors or small rolling doors and grilles
-
Chain hoist with electric interlock for manual operation in an emergency
MT
Medium-duty Trolley Operator
-
For use on standard-lift sectional overhead doors with mid-range duty-cycle requirements
-
Rated duty cycle: maximum 12 cycles per hour; less than 50 cycles per day
-
Suspends from the ceiling and directly attaches and controls a sectional door
-
Trolley with disconnect disengages operator for manual lifting in an emergency
MJ
Medium-duty Jackshaft Operator
-
For use on smaller, lighter commercial doors with mid-range duty-cycle requirements
-
Rated duty cycle: maximum 12 cycles per hour; less than 50 cycles per day
-
Floor level disconnect disengages operator manual lifting in an emergency
-
Wall mount for high or vertical lift sectional doors or small rolling doors and grilles
J

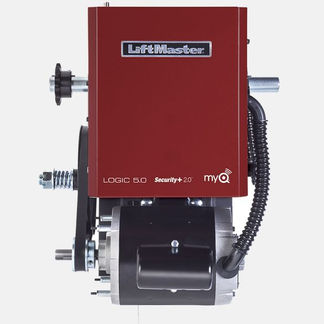

Jackshaft Operator - Logic 5.0
-
For use on industrial applications with smaller sectional doors
-
Rated duty cycle: 25 per hour; up to 90 cycles per day
-
Side mounts to the wall for vertical or high-lift doors
-
Smaller rolling doors and grilles. Wall or hood mounts
H
Hoist Operator - Logic 5.0
-
Optimal for industrial applications with larger sectional overhead doors
-
Rated duty cycle: 25 per hour; up to 90 cycles per day
-
Side mounts to the wall for vertical or high-lift doors
-
Rolling doors and grilles. Wall or hood mounts
GH
Gearhead Hoist Operator - Logic 5.0
-
For use on heavy industrial, high-cycle doors. Lubricated gear system and numerous custom modifications
-
Rated duty cycle: 25 per hour; greater than 90 cycles per day
-
Larger / heavier sectional overhead doors. Side mounts to the wall for vertical or high-lift doors
-
Larger / heavier rolling door and grilles
T
Trolley Operator - Logic 5.0
-
For use on standard-lift sectional overhead doors
-
Rated duty cycle: 25 per hour; up to 90 cycles per day
-
Suspends from the ceiling. Directly attaches to drive and controls the door
GT
Gearhead Trolley Operator - Logic 5.0
-
For use on heavy industrial, high cycle applications. Lubricated gear system and numerous custom modifications
-
Rated duty cycle: 25 per hour; greater than 90 cycles per day
-
Suspends from the ceiling. Directly attaches to drive and controls the door
-
Sectional overhead doors
APT
Apartment Trolley Operator - Logic 5.0
-
For use on high-cycle, sectional overhead apartment doors
-
Rated duty cycle: over 100 cycles per day
-
Rental & retail environments. Resilient-mount motor ensures quiet operation
-
Quick disconnect trolley with auto-reconnect saves time and eases reconnection
HCTDCUL
Specialty Overhead Operator
-
Engineered to increase uptime and provide powerful, reliable performance
-
Noise-isolating design provides for exceptionally smooth and quiet operation
-
Selectable speed control opens up to 11 inches per second to keep traffic flowing
Jackshaft Operators
Opera-MJ (OMJ)
Medium-duty Jackshaft Operator
Model Opera-MJ is a medium-duty operator designed for use on standard, high and vertical lift sectional doors or small rolling doors and grilles. It incorporates a floor level disconnect mechanism for manual operations.
Opera-MH (OMH)
Medium-duty Jackshaft Operator with Hoist-a-Matic®
Model Opera-MH is a medium-duty operator designed for use on standard, high and vertical lift sectional doors or small rolling doors and grilles. It incorporates the patented Hoist-a-Matic®, a self-engaging chain hoist for manual operation, which simplifies operation and installation.
Opera-J (OPJ)
Heavy-duty Commercial Jackshaft Operator with Floor Level Disconnect
Model Opera-J is a heavy-duty commercial operator designed for use on standard, high and vertical lift sectional doors or rolling doors and grilles. It incorporates a floor level disconnect mechanism for manual operation.
Opera-H (OPH)
Heavy-duty Commercial Jackshaft Operator with Hoist-a-Matic®
Model Opera-H is a heavy-duty commercial operator designed for use on standard, high and vertical lift sectional doors or rolling doors and grilles. It incorporates the patented Hoist-a-Matic®, a self-engaging chain hoist for manual operation, which simplifies operation and installation.
Opera-HJ (OHJ)
Heavy-duty Commercial Jackshaft Operator with Hoist-a-Matic® and Floor Level Disconnect
Model Opera-HJ is a heavy-duty commercial operator designed to motorize grilles when a manual egress is required. It incorporates both the patented Hoist-a-Matic®, a self-engaging chain hoist for manual operation, as well as a floor level disconnect mechanism.
Opera-SH (OSH)
Heavy-duty Industrial Operator with Solenoid Brake
Model Opera-SH is an ultra-high-end heavy-duty V-belt drive industrial operator designed for use on standard, high and vertical lift sectional doors or rolling doors and grilles. It incorporates a chain hoist for manual operation with a floor level engaging device.
MSJ
Heavy-duty Industrial Operator with Solenoid Brake
Model MSJ is an ultra-high-end heavy-duty V-belt drive industrial operator designed for use on large standard, high and vertical lift sectional doors or rolling doors and grilles. It incorporates an emergency chain hoist for manual operation, with a floor level engaging device.
Opera-GH (OGH)
Heavy-duty Industrial Gear Head Operator with Hoist-a-Matic®
Model Opera-GH is a heavy-duty industrial operator designed for use on industrial, high and vertical lift sectional doors or rolling doors and grilles. It incorporates the patented Hoist-a-Matic®, a self-engaging chain hoist for manual operation, which simplifies operation and installation.
MGH
Very Heavy-duty Industrial Gear Head Operator
Model MGH is a very heavy-duty worm gear industrial operator designed for use on industrial, high and vertical lift sectional doors or rolling doors and grilles. It incorporates a chain hoist for manual operation with a floor level engaging device with electrical cut-out.
Rapido® RSH
Heavy-duty Industrial Jackshaft Operator for Fast Sectional Doors
The Rapido® RSH is a high-speed heavy-duty V-belt drive industrial operator designed for use on properly counter-balanced standard, high and vertical lift sectional doors. The operator offers up to 2X the speed of the standard jackshaft operator while smoothly managing Soft-Starts and Soft-Stops, hence reducing the wear and tear of the complete door system.
Rapido® RVH
Heavy-duty Industrial Jackshaft Operator for Fast Rolling Doors
The Rapido® RVH is a high-speed heavy-duty V-belt drive industrial operator designed for use on vinyl rolling doors as well as rolling bug screens. The operator offers an opening speed up to 30 inches/sec while smoothly managing Soft-Starts and Soft-Stops, therefore reducing the wear and tear of the complete door system.
Trolley Operators
OMT
Medium-duty Trolley Operator
Model OMT is a medium-duty trolley operator designed for use on smaller and low-cycling industrial standard lift sectional doors. It features a high starting torque intermittent-duty industrial type motor and a quick release disconnect arm.
OTH
Heavy-duty Commercial Trolley Operator
Model OTBH is a heavy-duty low headroom trolley operator designed for use on industrial standard lift sectional doors.
OTBH
Heavy-duty Commercial Trolley Operator with Solenoid Brake
Model OTBH is a heavy-duty low headroom trolley operator designed for use on industrial standard lift sectional doors. It incorporates a drum-band type solenoid brake.
MGT
Heavy-duty Commercial Trolley Operator with Solenoid Brake
Model MGT is a heavy-duty worm gear industrial trolley operator designed for use on industrial standard lift sectional doors. It features a drum-band type solenoid brake.
OTH-A.00
Heavy-duty Trolley Apartment Operator
Model OTH-A.00 is a low headroom apartment type garage door operator designed for use on industrial standard lift sectional doors with high cycling frequency requirements.
OTBH-A.00
Heavy-duty Trolley Apartment Operator with Solenoid Brake
Model OTBH-A.00 is a low headroom apartment type garage door operator designed for use on industrial standard lift sectional doors with high cycling frequency requirements. It incorporates a drum-band type solenoid brake.
OTBH-A.05
Heavy-duty Premium Trolley Apartment Operator with Solenoid Brake
Model OTBH-A.05 is a heavy-duty low headroom trolley operator designed for use on industrial standard lift sectional doors with high cycling daily frequency requirements. It incorporates a drum-shoe type solenoid brake and a low vibrating braking system, which provides additional stability and noise reduction.
